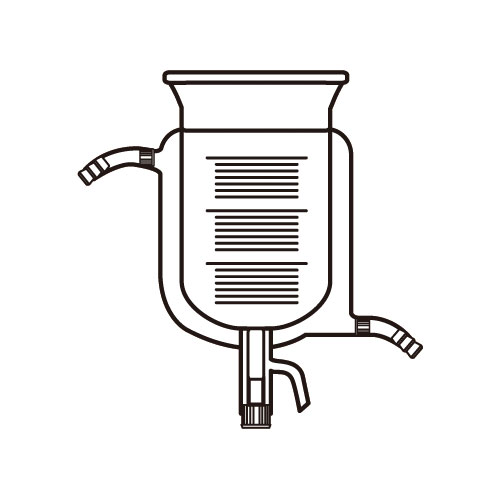

Reaction Vessels, Cylindrical, Thermostatic Jacket Graduated Withdrawal Valve And GL Connection
- Description
Description
Reaction Vessels, Cylindrical, Thermostatic Jacket Graduated Withdrawal Valve And GL Connection
| Catalogue Number | Flange Size(DN) | Capacity(ml) | OD/ID Diameter(mm) | Height(mm) | Connector(GL) | Valve(mm) |
|---|---|---|---|---|---|---|
| 457 01 01 | 60 | 500 | 90/65 | 355 | 14 | 10 |
| 457 01 02 | 60 | 1000 | 105/80 | 350 | 14 | 10 |
| 457 02 01 | 100 | 500 | 130/105 | 275 | 18 | 10 |
| 457 02 02 | 100 | 1000 | 130/105 | 340 | 18 | 10 |
| 457 02 03 | 100 | 2000 | 130/105 | 470 | 18 | 10 |
| 457 02 04 | 100 | 3000 | 190/160 | 420 | 18 | 10 |
| 457 02 05 | 100 | 4000 | 190/160 | 475 | 18 | 10 |
| 457 03 01 | 150 | 2000 | 190/160 | 370 | 18 | 10 |
| 457 03 02 | 150 | 3000 | 190/160 | 415 | 18 | 10 |
| 457 03 03 | 150 | 4000 | 190/160 | 470 | 18 | 10 |
| 457 03 04 | 150 | 5000 | 190/160 | 525 | 18 | 10 |
| 457 03 05 | 150 | 6000 | 190/160 | 580 | 18 | 10 |
